Standing in the middle of your kitchen with a tape measure trying to figure out if a new dishwasher will fit into an old cabinet slot is incredibly frustrating. You might be staring at the empty gap left by a broken unit, wondering if modern models have outgrown your older counters or if you will be stuck paying for cabinet modifications. Nailing down the standard dishwasher size early on saves you from the massive headache of ordering a unit that sticks out too far or flat-out refuses to slide under the countertop.
Our local appliance specialists have handled plenty of these kitchen layouts, taking the guesswork out of the process so you can upgrade your dishwasher with complete confidence. In this guide, we break down the exact measurements you need, explain how interior capacity translates to real-world use, and show you how to measure your kitchen cutout accurately for a perfectly smooth installation.
Upgrade Your Kitchen Setup
Explore our wide selection of built-in dishwashers designed to fit your cabinet space perfectly.
Explore DishwashersKey Takeaways
- Accurate Dimensions: Most standard built-in models require a 24-inch wide by 35-inch high opening, though actual appliance widths are slightly smaller for clearance.
- Interior Capacity: A typical standard-size unit holds between 12 and 16 place settings, making it ideal for average households and families of four.
- Space Optimization: Modern engineering features like tall tubs and third racks maximize internal loading space without changing the exterior footprint.
Standard Dishwasher Dimensions Explained
When planning a kitchen appliance upgrade, understanding the baseline measurements of built-in units prevents costly installation errors. A standard dishwasher size is universally recognized in the appliance industry as measuring 24 inches wide, 35 inches high, and 24 inches deep. However, these numbers represent the required space in your cabinetry, not the literal size of the machine itself.
Appliance vs. Cutout Measurements
The actual physical dimensions of the dishwasher will always be slightly smaller than the 24-by-35-inch standard. Most units measure closer to 23.5 or 23.75 inches wide to allow enough wiggle room for the appliance to slide into the cabinet cavity without damaging the surrounding wood. This slight gap also provides the necessary airflow and vibration reduction while the machine runs.
Height Adjustments and Depth Variations
You can fine-tune the final height of your dishwasher using its built-in adjustable leveling legs. These threaded feet allow installers to raise or lower the machine by about an inch to sit flush against the bottom of your countertop. Standard dishwasher depth can also vary slightly depending on the style of the front panel. Models with protruding handles or thick, custom-panel ready faces might measure up to 25 inches deep, meaning the handle will stick out slightly past your lower cabinet doors.
How to Measure Your Kitchen for a New Dishwasher
Taking highly accurate measurements of your existing cabinet or dishwasher space is the most important step before purchasing a new dishwasher. Do not assume your opening perfectly matches the standard dishwasher size just because an old unit currently sits there.
Step-by-Step Measuring Process
- Measure the width: Run your tape measure horizontally across the opening at the top, middle, and bottom, using the smallest measurement as your true width.
- Measure the height: Place the tape measure on the floor and measure straight up to the lowest point of the countertop above, repeating this at the left and right sides of the cavity.
- Measure the depth: Measure from the back wall of the opening straight forward to the front edge of the cabinet face.
When measuring for your new dishwasher, our installers always recommend checking the physical floor underneath the dishwasher space, because multiple layers of new tile or laminate added over the years can significantly reduce your available height clearance. You also need to inspect the back of the cavity for protruding plumbing pipes, drain hoses, and electrical lines. Thick utility lines running along the back wall can reduce your usable depth, preventing the dishwasher from sliding all the way backward.
Comparing Dishwasher Sizes for Your Kitchen Layout
| Dimension | Exact Range | Average Capacity | Best Use Case | Typical Price |
|---|---|---|---|---|
| Standard 24-Inch | 23.5 - 24 inches wide | 12 to 16 place settings | Standard household kitchens | $400 - $1,500 |
| Compact 18-Inch | 17.5 - 18 inches wide | 8 to 10 place settings | Small apartments or wet bars | $500 - $1,200 |
| ADA-Compliant | 23.5 - 24 inches wide, shorter height | 12 to 14 place settings | Wheelchair accessible or low counters | $600 - $1,600 |
Understanding Dishwasher Capacity and Place Settings
Once you verify that your exterior dimensions fit the space, you need to determine if the interior capacity meets your daily cleaning needs. Dishwasher capacity is universally measured in "place settings" rather than square inches or gallons. According to strict industry testing standards, a single full place setting consists of a dinner plate, a snack plate, a saucer, a bowl, a coffee cup, a drinking glass, and a complete set of silverware.
A standard dishwasher size typically holds between 12 and 16 place settings per load, depending on the specific model and brand. This internal volume directly correlates to how often you will need to run the machine based on your household size. A 14-place-setting capacity is generally the sweet spot for a family of four, allowing you to load all the dishes, glasses, and utensils from a full day of meals into a single evening wash cycle.
Interior Features That Maximize Standard Tub Space
While the exterior dishwasher size remains fixed to fit your cabinets, the interior engineering varies dramatically between different manufacturers. Appliance designers constantly invent clever ways to squeeze more usable space out of the exact same 24-inch footprint. The most significant advancement is the "tall tub" design, which eliminates the bulky plastic kickplate at the bottom of the machine to extend the washing tub closer to the floor.
This increased vertical space allows you to load oversized stock pots, large baking sheets, and tall pitcher glasses simultaneously. To further maximize this room, many modern dishwashers feature a thin third rack situated at the very top of the tub. This shallow tray is designed specifically for flatware, spatulas, and small bowls, entirely freeing up the bottom rack where a traditional silverware basket would sit. Adjustable upper racks and folding tines provide even more loading flexibility, letting you instantly reconfigure the tub for awkwardly shaped cookware.
Top-Rated Standard Size Dishwashers
Finding the right dishwasher involves balancing powerful cleaning features with smart interior design. The following top-rated units maintain a standard exterior footprint while offering excellent capacity and advanced washing capabilities for your home.
GE Profile Energy Star 24" Fingerprint Resistant Stainless Steel Top Control Built-In Dishwasher With Microban Antimicrobial Technology
Shop this GE Profile Dishwasher
This GE Profile unit delivers an exceptionally deep clean while offering excellent interior loading flexibility for busy households. The stainless steel tub retains heat for superior drying, while the built-in antimicrobial technology actively prevents bacteria growth on frequently touched surfaces inside the machine. A highly adjustable upper rack makes it easy to fit tall blender jars and large plates in a single run. With powerful dedicated jets located throughout the wash arms, it blasts away stuck-on food without requiring any rigorous pre-rinsing from you at the sink.
Top Features
- Microban Technology: Resists the growth of odor-causing bacteria on the door gasket and internal filters.
- Deep Clean Silverware Jets: Blasts high-pressure water from the bottom up to thoroughly clean densely packed utensils.
- Bottle Wash Jets: Directs water deep inside tall glasses and reusable sports bottles for a targeted clean.

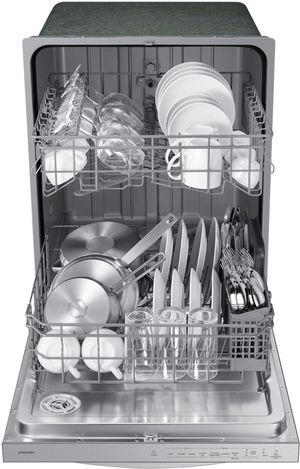

Samsung 24" Fingerprint Resistant Stainless Steel Top Control Built In Dishwasher
Samsung offers a sleek, modern dishwasher that maximizes every square inch of its standard footprint for heavy-duty dishwashing. The specialized tall tub interior easily accommodates oversized roasting pans and awkward serving platters that normally have to be washed by hand. The fingerprint-resistant finish keeps the exterior looking pristine even in a high-traffic kitchen with small children. Operating at a quiet noise level, it allows you to run wash cycles after dinner without disrupting television shows or normal household conversations in open-concept living spaces.
Top Features
- AutoRelease Door: Automatically opens the door slightly at the end of the cycle to circulate fresh air and improve drying.
- StormWash System: Uses powerful rotating jets to scrub heavy pots and pans without pre-washing.
- Third Rack: Provides a dedicated top tier for long cooking utensils and espresso cups.

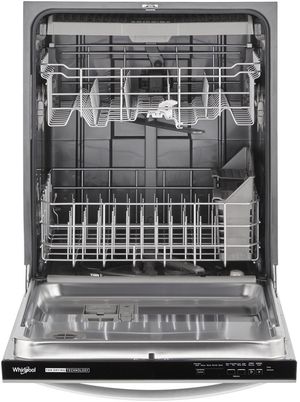

Whirlpool 24" Fingerprint Resistant Stainless Steel Built In Dishwasher
Shop this Whirlpool Dishwasher
This reliable Whirlpool model focuses on straightforward usability and practical internal storage for families who run daily loads. It fits perfectly into any standard 24-inch kitchen cutout while offering an impressive capacity that easily handles a full day's worth of dishes. The sensor cycle takes the guesswork out of washing by automatically measuring the soil level and adjusting the water temperature and wash time accordingly. It offers a highly practical layout with folding tines that let you customize the lower rack for large pasta pots.
Top Features
- Soil Sensor: Detects how dirty the dishes are and optimizes the cycle for water and energy efficiency.
- 1-Hour Wash Cycle: Cleans lightly soiled plates and glasses rapidly when you are hosting guests.
- Heated Dry Option: Uses an internal heating element to thoroughly dry plastics and heavy ceramics.

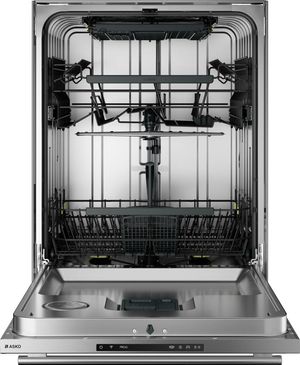

ASKO 40 Series 24" Stainless Steel Top Control Built-In Dishwasher
ASKO delivers premium Scandinavian engineering in a standard size unit, focusing on extreme durability and high-end aesthetics. Built with more high-quality steel components than plastic, this model is designed to withstand decades of rigorous daily use in busy kitchens. The specialized drying system extracts moisture efficiently, leaving even hard-to-dry plastic food storage containers completely free of water spots. Its robust rack system glides smoothly even when fully loaded with heavy stoneware plates, offering a truly premium feel every time you load and unload the machine.
Top Features
- 8 Steel Construction: Uses high-quality stainless steel for all major internal components to prevent long-term wear and rust.
- Turbo Combi Drying: Uses fan-assisted drying and automatic door opening to vent steam naturally.
- Flexiracks System: Provides sturdy, adjustable nylon-coated steel racks that adapt to varying load shapes.
Bosch 800 Series 24" White Top Control Built-In Dishwasher
Renowned for its whisper-quiet operation, this Bosch 800 Series dishwasher delivers exceptional performance in a pristine white finish. Despite its standard 24-inch exterior, the remarkably deep interior tub accommodates up to 16 precise place settings, making it perfect for large households. The advanced drying technology uses natural minerals to heat the internal air, completely drying plastics and tupperware without using a harsh exposed heating element. The flexible V-shaped third rack features drop-down sides to comfortably hold deep cereal bowls alongside your everyday silverware.
Top Features
- CrystalDry Technology: Transforms internal moisture into heat to achieve incredibly thorough drying results.
- PrecisionWash System: Uses intelligent sensors to scan dishes throughout the cycle to ensure a spotless clean.
- InfoLight: Projects a red beam of light onto the floor so you know the ultra-quiet machine is running.
Understanding the standard dishwasher size helps you navigate your kitchen appliance upgrade with total confidence. By accurately measuring your cabinet cutout and utilizing the space-saving internal features of modern tall tub designs, you can easily handle the daily mess of a large household. Stop by Arizona Appliance & Home to shop our massive selection of high-quality dishwashers today. Our local teams provide expert showroom guidance in Phoenix, Tucson, and Scottsdale, offering professional installation services and reliable customer support that the massive big-box stores simply cannot match.
Dishwasher Size FAQs
A standard built-in dishwasher requires a cabinet opening of 24 inches wide, 35 inches high, and 24 inches deep. The physical machine itself is built slightly smaller, usually around 23.5 inches wide, to slide smoothly into the cutout without scraping the cabinetry.
Most standard dishwashers will fit in older homes, but you must measure the height carefully if new flooring was added over the years. Multiple layers of tile or hardwood can trap the old unit or reduce the vertical clearance below the required 35 inches.
A typical standard size dishwasher holds between 12 and 16 place settings. This high capacity easily accommodates the daily dishes, silverware, and serving bowls used by an average family of four.
A tall tub dishwasher has the exact same exterior footprint as a standard model but extends the interior washing space closer to the floor. This design eliminates the bulky bottom kickplate, giving you more vertical room inside to wash oversized pots and tall baking sheets.
You cannot replace an 18-inch compact dishwasher with a standard 24-inch unit unless you actively physically alter your lower cabinets. The standard model requires an additional six inches of horizontal width that your current compact cutout simply does not have.
You need at least 27 to 30 inches of clear floor space directly in front of the dishwasher to allow the door to drop down completely. This clearance allows you to pull the lower racks out entirely for easy loading and unloading without bumping into kitchen islands.
